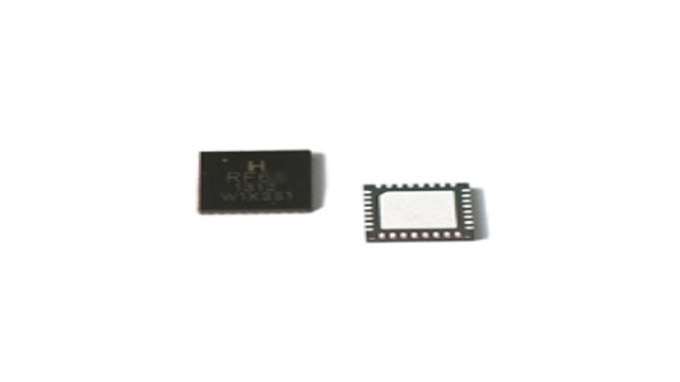

RF69WRF transceiver

The RF69W is a highly integrated RF transceiver capable of operation over a wide frequency range, including the 433, 868 and 915 MHz license-free ISM (Industry Scientific and Medical) frequency bands.

General Description

The RF69W is a highly integrated RF transceiver capable of operation over a wide frequency range, including the 433, 868 and 915 MHz license-free ISM (Industry Scientific and Medical) frequency bands. Its highly integrated architecture allows for a minimum of external components whilst maintaining maximum design flexibility. All major RF communication parameters are programmable and most of them can be dynamically set. The RF69W offers the unique advantage of programmable narrow-band and wide- band communication modes without the need to modify external components. The RF69W is optimized for low power consumption while offering high RF output power and channelized operation. TrueRF™ technology enables a low- cost external component count (elimination of the SAW filter) whilst still satisfying ETSI and FCC regulations.

Features

+20 dBm - 100 mW Power Output Capability

High Sensitivity: down to -120 dBm at 1.2 kbps

High Selectivity: 16-tap FIR Channel Filter

Bullet-proof front end: IIP3 = -18 dBm, IIP2 = +35 dBm,80 dB Blocking Immunity, no Image Frequency response

Low current: Rx = 16 mA, 100nA register retention

Programmable Pout: -18 to +20 dBm in 1dB steps

Constant RF performance over voltage range of chip

FSK Bit rates up to 300 kb/s

Fully integrated synthesizer with a resolution of 61 Hz

FSK, GFSK, MSK, GMSK and OOK modulations

Built-in Bit Synchronizer performing Clock Recovery

Incoming Sync Word Recognition

115 dB+ Dynamic Range RSSI

Automatic RF Sense with ultra-fast AFC

Packet engine with CRC-16, AES-128, 66-byte FIFO

Built-in temperature sensor

Applications

Automated Meter eading

Wireless Sensor Networks

Homeand Building Automation

Wireless Alarm and Security Systems

Industrial Monitoring and Control
