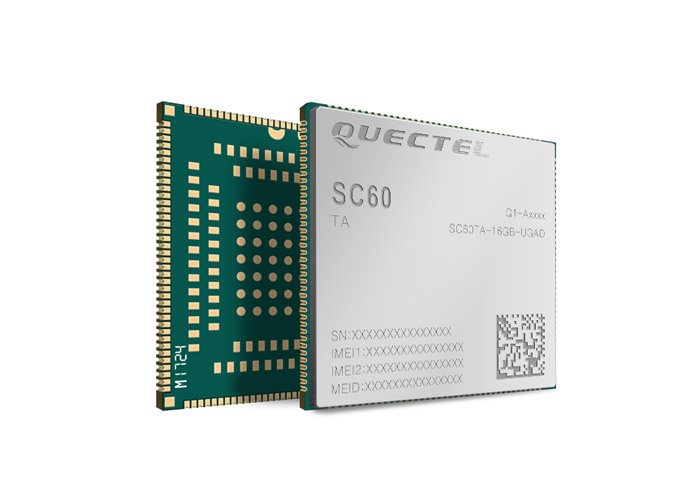

LTE SC60 Smart Module


SC60 is Quectel’s new generation of multi-mode Smart LTE Cat 6 module with built-in Android 7.1 Nougat OS. Based on Qualcomm octa-core and 64-bit high-performance processors with built-in Adreno 506 GPU, SC60 is designed to support leading performance, various multimedia features and Quick Charge 3.0 technology.


Key Benefits


LTE Cat 6 modem supporting 2x20MHz carrier aggregation, with maximum download speed up to 300Mbps

Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage

Dual LCDs and dual touch panels for independent display and operation: 1920x1200 @60fps for primary display and 1920x1080 @60fps for secondary display

Support maximally four cameras, with two of them working simultaneously

Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment

Support recording and playback of 1080p videos at 60fps


Overview


SC60 is Quectel’s new generation of multi-mode Smart LTE Cat 6 module with built-in Android 7.1 Nougat OS. Based on Qualcomm octa-core and 64-bit high-performance processors with built-in AdrenoTM 506 GPU, SC60 is designed to support leading performance, various multimedia features and Quick Charge 3.0 technology. It is ideal for both industrial and consumer applications requiring high data-rate and multimedia functions. SC60 contains seven variants: SC60-CE, SC60-E, SC60-A, SC60-AU, SC60-J, SC60-LA and SC60-W (SC60-W for Wi-Fi & BT only).


SC60 supports multiple-input multiple-output (MIMO) technology. The use of multiple antennas at the receiver end at the same time and on the same frequency band greatly minimizes errors and optimizes the data speed. The module also combines high-speed wireless connectivity with embedded multi-constellation and high-sensitivity GNSS (GPS, GLONASS and BeiDou) receiver for positioning.


A rich set of interfaces (such as LCM, Camera, Touch Panel, MIC, SPK, UART, USB, I2C, SPI) extend the applicability of the  module to a wide range of M2M applications, including smart POS, smart cash registers, smart home gateways, smart robots, smart wearables, security surveillance, PDA & tablets, vending machines, delivery lockers, police and law enforcement equipment, in-car video streaming and entertainment systems, etc.









LTE SC20 Smart Module


SC20 is Quectel’s new generation of multi-mode Smart LTE Cat 4 module with built-in Android OS. It contains seven variants: SC20-CE, SC20-E, SC20-A, SC20-AU, SC20-J, SC20-EU* and Wi-Fi & BT only version SC20-W.


Key Benefits


Integrates Android OS, Wi-Fi, Bluetooth and GNSS into one module

Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage

MIMO technology meets demands for data rate and link reliability in modem wireless communication systems

Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment

LCC+LGA package ensures reliable connectivity with applications


Overview


SC20 is Quectel’s new generation of multi-mode Smart LTE Cat 4 module with built-in Android OS. It contains seven variants: SC20-CE, SC20-E, SC20-A, SC20-AU, SC20-J, SC20-EU and Wi-Fi & BT only version SC20-W.


SC20 delivers maximally 150Mbps downlink and 50Mbps uplink data rates based on LTE network, and additionally supports wireless communication via IEEE 802.11 a/b/g/n (IEEE 802.11 b/g/n for SC20-CE/SC20-W by default) and BT4.1 LE (BT4.2 on Android 7.1 or later versions). It is ideal for both industrial and consumer applications requiring high data rate and high-speed internet access. SC20 is backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remote areas devoid of 3G or LTE coverage.


SC20 supports multiple-input multiple-output (MIMO) technology. The use of multiple antennas at the receiver end at the same time and on the same frequency band greatly minimizes errors and optimizes the data speed. The module also         combines high-speed wireless connectivity with embedded multi-constellation and high-sensitivity GNSS (GPS, GLONASS and BeiDou) receiver for positioning.


A rich set of interfaces (such as LCM, Camera, Touch Panel, MIC, SPK, UART, USB, I2C)  extend the applicability of the module to a wide range of M2M applications, such as MID, PND, POS, router, data card, in-vehicle solutions, smartphone, digital  signage, security and industrial PDA.
