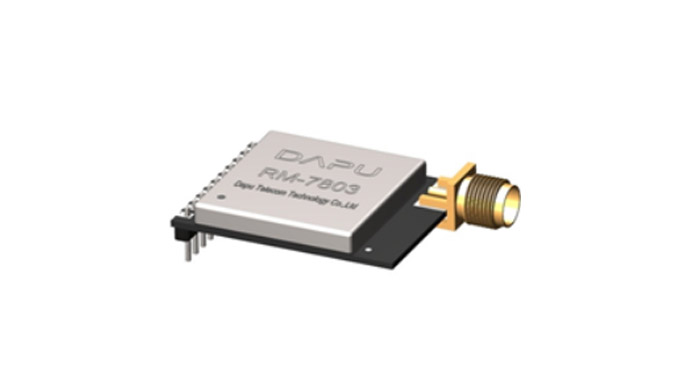

RM-7803
operating temp -40 ~85℃
LoraWan 433MHz/470MHz
Product features:
LoRaTM Modem 168 dB maximum link budget
+17dBm- 50 mW constant RF output vs. V supply
High sensitivity: down to -148 dBm
support frequency 433MHz, 470MHz
supply voltage 3.3v
stop mode <2uA
operating temp -40 ~85℃
RM-7203
operating temp -40 ~85℃
LoRa 868MHz/915MHz
Product features:
LoRaTM Modem 168 dB maximum link budget
+20dBm- 50 mW constant RF output vs. V supply
High sensitivity: down to -148 dBm
support frequency 868MHz, 915MHz
supply voltage 3.3v
stop mode <2uA
operating temp -40 ~85℃
