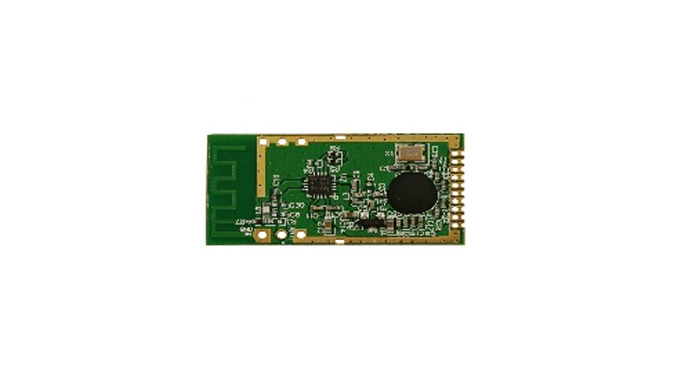

RFM75P2.4G RF transceiver
RFM75P is a GFSK transceiver module operating in the world wide ISM frequency band at 2400 - 2483.5 MHz. Burst mode transmission and up to 2Mbps air data rate make them suitable for applications requiring ultra low power consumption.The embedded packet processing engines enable their full operation with a very simple MCU as a radio system.Auto re-transmission and auto acknowledge give reliable link without any MCU interference.


Features


2400-2483.5 MHz ISM band operation

Support 250Kbps, 1Mbps and 2 Mbps air data rate

Programmable output power(-5dBm to +20dBm)

Tolerate +/- 60ppm 16 MHz crystal

Variable payload length from 1 to 32bytes

Automatic packet processing

6 data pipes for 1:6 star networks

1.9V to 3.6V power supply

4-pin SPI interface with maximum 8 MHz clock rate

SMD-10pin Package


Applications


Wireless PC peripherals

Wireless gamepads

Wireless audio

Remote controls

Home automation

Toys





RFM75GFSK transceiver
RFM75 is a GFSK transceiver operating in the world wide ISM frequency band at 2400-2483.5 MHz.Burst mode transmission and up to 2Mbps air data rate make them suitable for applications requiring ultra low power consumption. The embedded packet processing engines enable their full operation with a very simple MCU as a radio system. Auto re-transmission and auto acknowledge give reliable link without any MCU interference.


General Description


RFM75 is a GFSK transceiver operating in the world wide ISM frequency band at 2400-2483.5 MHz.Burst mode transmission and up to 2Mbps air data rate make them suitable for applications requiring ultra low power consumption. The embedded packet processing engines enable their full operation with a very simple MCU as a radio system. Auto re-transmission and auto acknowledge give reliable link without any MCU interference.

RFM75 operates in TDD mode, either as a transmitter or as a receiver.

The RF channel frequency determines the center of the channel used by RFM75. The frequency is set by the RF_CH register in register bank 0 according to the following formula: F0= 2400 + RF_CH (MHz). The resolution of the RF channel frequency is 1MHz.

A transmitter and a receiver must be programmed with the same RF channel frequency to be able to communicate with each other. The output power of RFM75 is set by the RF_PWR bits in the RF_SETUP register.

Demodulation is done with embedded data slicer and bit recovery logic. The air data rate can be programmed to 250Kbps, 1Mbps or 2Mbps by RF_DR_HIGH and RF_DR_LOW register. A transmitter and a receiver must be programmed with the same setting.

In the following chapters, all registers are in register bank 0 except with explicit claim.


Features


2400-2483.5 MHz ISM band operation

Support 250Kbps, 1Mbps and 2 Mbps airdata rate

Programmable output power

Tolerate +/- 60ppm 16 MHz crystal

Variable payload length from 1 to 32bytes

Automatic packet processing

6 data pipes for 1:6 star networks

1.9V to 3.6V power supply

4-pin SPI interface with maximum 8 MHz clock rate

20-pin 4x4mm QFN package


Applications


Wireless PC peripherals

Wireless gamepads

Wireless audio

Remote controls

Home automation

Toys
