GNSS L26


L26 is a concurrent receiver module integrated with multiple systems. It provides simultaneous GPS, GLONASS, Galileo and QZSS open service L1 reception capability. With 33 tracking channels, 99 acquisition channels and 210 PRN channels, L26 can acquire and track any mix of multiple satellite signals


Key Benefits


Multi-GNSS engine for GPS, GLONASS, Galileo and  QZSS

EASY™, an advanced AGPS technology without the need of external memory

Support short circuit protection and antenna detection

Built-in LNA for better sensitivity

Ultra low power consumption in tracking mode, 21mA

AlwaysLocate™, an intelligent algorithm for power saving

LOCUS, an embedded logger solution with no need of host and external flash

High sensitivity, -167dBm @Tracking, -148dBm @Acquisition

99 acquisition/33 tracking channels, and  210 PRN channels

Support DGPS, SBAS (WAAS/ EGNOS/ MSAS/ GAGAN)

Anti-Jamming, Multi-tone Active Interference Canceller





GPS L70


L70, an SMD type module, brings the high performance of MTK positioning engine to the industrial applications with compact profile, ultra low power consumption and fast positioning capability. Combining advanced AGPS called EASY™ (Embedded Assist System) and proven AlwaysLocate™ technology, L70 achieves the highest performance and fully meets the industrial standard.


Key Benefits


Extremely compact size: 10.1mm × 9.7mm × 2.5mm

EASY™, advanced AGPS technology without external memory

Ultra low power consumption in tracking mode, 12mA

AlwaysLocate™, an intelligent controller of periodic mode

LOCUS, an embedded logger solution with no need of host and external flash

High sensitivity, -165dBm@Tracking, -148dBm@Acquisition

66 acquisition channels, 22 tracking channels

FLP mode, only 5mA in static receiving

Balloon mode, for high altitude up to 80km

Support QZSS

Support DGPS, SBAS(WAAS/EGNOS/MSAS/GAGAN)

Anti-Jamming, Multi-tone Active Interference Canceller

PPS VS. NMEA can be used in time service

Support SDK command developed by Quectel



GPS L70-R


L70-R, a low cost ROM-based GPS module, brings the high performance of MTK positioning engine to the industrial applications with compact profile, ultra low power consumption and fast positioning capability. Combining advanced AGPS called EASY™ (Embedded Assist System) technology, L70-R achieves the highest performance and fully meets the industrial standard.


Key Benefits


Extremely compact size: 10.1mm × 9.7mm × 2.5mm

Cost efficient for ROM-based version

Ultra low power consumption in tracking mode, 13mA

EASY™, an advanced AGPS technology without external memory

High sensitivity: -165dBm @Tracking, -148dBm @Acquisition

66 acquisition channels, 22 tracking channels

Support QZSS

Balloon mode, for high altitude up to 80km

PPS VS. NMEA can be used for time service

Great anti-jamming performance due to multi-tone active interference canceller





GPS L70-RL


L70-RL, a low cost ROM-based GPS module, brings the high performance of MTK positioning engine to industrial applications with its compact profile, ultra low power consumption and fast positioning capability. Designed to be compatible with Quectel L70-R module in the compact and unified form factor, L70-RL additionally provides a built-in LNA for better sensitivity in weak signal areas.


Key Benefits


Extremely compact size: 10.1mm × 9.7mm × 2.5mm

Cost-efficient ROM-based version

Ultra low power consumption in tracking mode: 18mA

Support EASY™, an advanced AGPS technology without the demand of external memory

Built-in LNA for better sensitivity

High sensitivity: 167dBm@Tracking, -149dBm@Acquisition

66 acquisition channels, 22 tracking channels

Support QZSS

Balloon mode, for high altitude up to 80km

PPS VS. NMEA can be used for time service

Great anti-jamming performance due to multi-tone active interference canceller



GNSS L76


L76, the extremely compact GNSS module, is a concurrent GNSS receiver with multiple GNSS systems. It provides simultaneous GPS, GLONASS, BeiDou, Galileo and QZSS open service L1 reception capability. With 33 tracking channels, 99 acquisition channels, and 210 PRN channels, L76 can acquire and track any mix of multiple satellite signals.


Key Benefits


Extremely compact size, 10.1mm × 9.7mm ×2.5mm

Multi-GNSS engine for GPS, GLONASS, BeiDou, Galileo and QZSS

EASY™, an advanced AGPS technology without external memory

Ultra low tracking power consumption, 18mA

AlwaysLocate™, an intelligent algorithm for power saving

LOCUS, an embedded logger solution with no need for host and external flash

High sensitivity, -165dBm @Tracking, -148dBm @Acquisition

99 acquisition/ 33 tracking channels and 210 PRN channels

Support DGPS, SBAS (WAAS/ EGNOS/ MSAS/ GAGAN)

Anti-Jamming, Multi-tone Active Interference Canceller

Balloon mode, for high altitude up to 80km

PPS VS. NMEA can be used for time service





GNSS L76B


L76B, the extremely compact GNSS module, is a concurrent receiver module integrated GPS with BeiDou system. It is pin to pin compatible with Quectel GNSS module L76 and provides simultaneous GPS and BeiDou open service L1 reception capability. With 33 tracking channels, 99 acquisition channels, and 210 PRN channels, L76B can acquire and track any mix of GPS and BeiDou signals.


Key Benefits


Extremely compact size, 10.1mm × 9.7mm × 2.5mm

Multi-GNSS engine for GPS, BeiDou and QZSS

EASY™, self-generated orbit prediction for instant positioning fix

AGPS supports for fast TTFF

Ultra low tracking power consumption, 18mA

AlwaysLocate™, an intelligent algorithm for power saving

LOCUS, an embedded logger solution with no need for host and external flash

High sensitivity, -163dBm @Tracking, -148dBm @Acquisition

99 acquisition/33 tracking channels and 210 PRN channels

Support DGPS, SBAS (WAAS/ EGNOS/ MSAS/ GAGAN)

Anti-Jamming, Multi-tone Active Interference Canceller




GNSS L76-L


L76-L is a concurrent receiver module integrating GPS, GLONASS, Galileo and QZSS systems. With 33 tracking channels, 99 acquisition channels and 210 PRN channels, L76-L can acquire and track any mix of GPS, GLONASS and SBAS signals. Designed to be compatible with Quectel L76 module in the compact and unified form factor, L76-L provides a built-in LNA for better performance in weak signal areas.


Key Benefits


Extremely compact size: 10.1mm × 9.7mm ×2.5mm

Multi-GNSS engine for GPS, GLONASS, Galileo and QZSS

Support EASY™, advanced AGPS technology without external memory

Built-in LNA for better sensitivity

Ultra low tracking power consumption

AlwaysLocate™, an intelligent algorithm for power saving

LOCUS, an embedded logger function with no need for host and external flash

Offer 99 acquisition/33 tracking channels and up to 210PRN channels

Support DGPS, SBAS (WAAS/EGNOS/MSAS/GAGAN)

Support UART and I2C Interfaces

Great anti-jamming performance due to multi-tone active interference canceller

Balloon mode, for high altitude up to 80km

PPS VS. NMEA can be used in time service

Support SDK command developed by Quectel

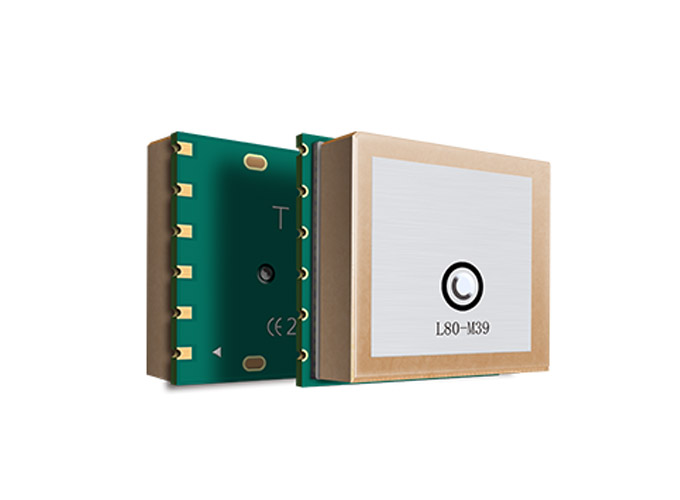

GPS L80


L80 is an ultra compact GPS POT (Patch on Top) module with an embedded 15.0mm × 15.0mm × 4.0mm patch antenna. This space-saving design makes L80 the perfect module for the miniature devices. Adopted by LCC package and integrated with patch antenna, L80 has exceptional performance both in acquisition and tracking.


Key Benefits


Embedded patch antenna: 15.0mm × 15.0mm × 4.0mm

Extremely compact size: 16.0mm × 16.0mm × 6.45mm

Automatic antenna switching function

Support short circuit protection and antenna detection

Built-in LNA for better sensitivity

EASY™, an advanced AGPS technology without external memory

Ultra low power consumption in tracking mode, 20mA

AlwaysLocate™, an intelligent controller of periodic mode

LOCUS, an embedded logger solution with no need of host and external flash

High sensitivity, -165dBm @Tracking, -148dBm @Acquisition

66 acquisition channels, 22 tracking channels

FLP mode, about 50% power consumption of normal mode

Balloon mode, for high altitude up to 80km

Support DGPS, SBAS (WAAS/EGNOS/MSAS/GAGAN)

Anti-Jamming, Multi-tone Active Interference Canceller

PPS VS. NMEA can be used for time service

Support SDK command developed by Quectel



GPS L80-R


L80-R is an ultra compact GPS POT (Patch on Top) module with an embedded 15.0mm × 15.0mm × 4.0mm patch antenna. This space-saving design makes L80-R the perfect module for the miniature devices. Adopted by LCC package and integrated with patch antenna, L80-R has exceptional performance both in acquisition and tracking.


Key Benefits


Embedded patch antenna: 15.0mm x 15.0mm x 4.0mm

Extremely compact size: 16.0mm x 16.0mm x 6.45mm

Cost efficient for ROM-based version

Built-in LNA for better sensitivity

EASY™, advanced AGPS technology without external memory

Ultra low power consumption in tracking mode, 20mA

High sensitivity: 165dBm@Tracking, -148dBm@Acquisition

66 acquisition channels, 22 tracking channels

Support QZSS

Balloon mode, for high altitude up to 80km

PPS VS. NMEA can be used in time service

Anti-Jamming, Multi-tone Active Interference Canceller





GNSS L86


L86 is an ultra-compact GNSS POT (Patch on Top) module with an embedded 18.4mm × 18.4mm × 4.0mm patch antenna and utilizes the MediaTek new generation GNSS chipset MT3333 that achieves the perfect performance. Designed to be compatible with Quectel GPS L80 module in the compact and unified form factor, it provides a flexible and scalable platform for migrating from GPS to GNSS. This space-saving design makes L86 a perfect module for miniature devices. Adopting LCC package and integrating patch antenna, L86 has exceptional performance both in acquisition and tracking.


Key Benefits


Multi-GNSS engine for GPS, GLONASS, Galileo and QZSS

Embedded patch antenna: 18.4mm × 18.4mm × 4.0mm

Extremely compact footprint: 16.0mm × 16.0mm × 6.45mm

Automatic antenna switching function

Support short circuit protection and antenna detection

Built-in LNA for better sensitivity

EASY™, an advanced AGPS technology without external memory

Ultra low power consumption in tracking mode, 26mA

AlwaysLocate™, an intelligent controller of periodic mode

LOCUS, an embedded logger function without the need of host and external flash

High sensitivity: -167dBm @Tracking, -149dBm @Acquisition

99 acquisition channels, 33 tracking channels

Balloon mode, for high altitude up to 80km

Support DGPS, SBAS (WAAS/EGNOS/MSAS/GAGAN)

Great anti-jamming performance due to multi-tone active interference canceller

PPS VS. NMEA can be used for time service

Support SDK command developed by Quectel



GNSS L26-DR


L26-DR is a concurrent multi-GNSS receiver module with dead reckoning solution. It is equipped with 6-axis sensor MEMs and a powerful GNSS core. The module provides high sensitivity, fast GNSS signal acquisition and tracking with low system integration effort.


Key Benefits


Ultra-compact size: 12.2mm × 16.0mm × 2.3 mm

Multi-GNSS engine for GPS, GLONASS, BeiDou, Galileo and QZSS

Built-in LNA for better sensitivity

Embedded 6-axis MEMS sensor

Support DGPS(RTCM)/SBAS (WAAS/EGNOS/MSAS/GAGAN)

Great anti-jamming performance due to multi-tone active interference canceller

Wheel tick input

ADR/UDR function supported by different firmware versions

Support SDK command developed by Quectel*





GNSS L96


L96 is a concurrent multi-GNSS receiver module with embedded chip antenna. With 33 tracking channels, 99 acquisition channels and 210 PRN channels, L96 supports concurrent reception of up to three GNSS systems (GPS+GLONASS+Galileo).


Key Benefits


Ultra-compact size: 14.0mm × 9.6mm × 2.0mm

Multi-GNSS engine for GPS, GLONASS, BeiDou, Galileo (RLM supported) and QZSS

Embedded, omnidirectional and wideband antenna

Built-in LNA for better sensitivity

Dual SAW filters for better noise cancellation

Support EASY™ and EPO advanced AGPS technologies without the need of any external memory

AlwaysLocate™, an intelligent algorithm for power saving

Ultra low tracking power consumption: 20mA

LOCUS, embedded log saving function without the need of host or any external flash

Support DGPS/SBAS (WAAS/EGNOS/MSAS/GAGAN)

Great anti-jamming performance due to multi-tone active interference canceller

Balloon mode, for high altitude up to 80km

PPS VS. NMEA can be used in time service

GLP/geo-fence/jamming detection/odometer functions

Support SDK command for customized settings​



GNSS L89


L89 is a high performance GNSS module supporting multi-constellation GNSS and dual GNSS bands. It can acquire and track GPS, IRNSS, GLONASS, BeiDou, Galileo and QZSS signals. With 2 embedded antennas, the module can work at L1 and L5 bands simultaneously.


Key Benefits


Extremely compact size: 25.0mm × 16.0mm × 6.8mm

Multi-GNSS engine for GPS, IRNSS, GLONASS, BeiDou, Galileo and QZSS

Support dual GNSS bands (L1, L5)

Built-in LNA for better sensitivity

Support DGPS, SBAS (WAAS/EGNOS/MSAS/GAGAN)

Great anti-jamming performance due to multi-tone active interference canceller

Support SDK command developed by Quectel
